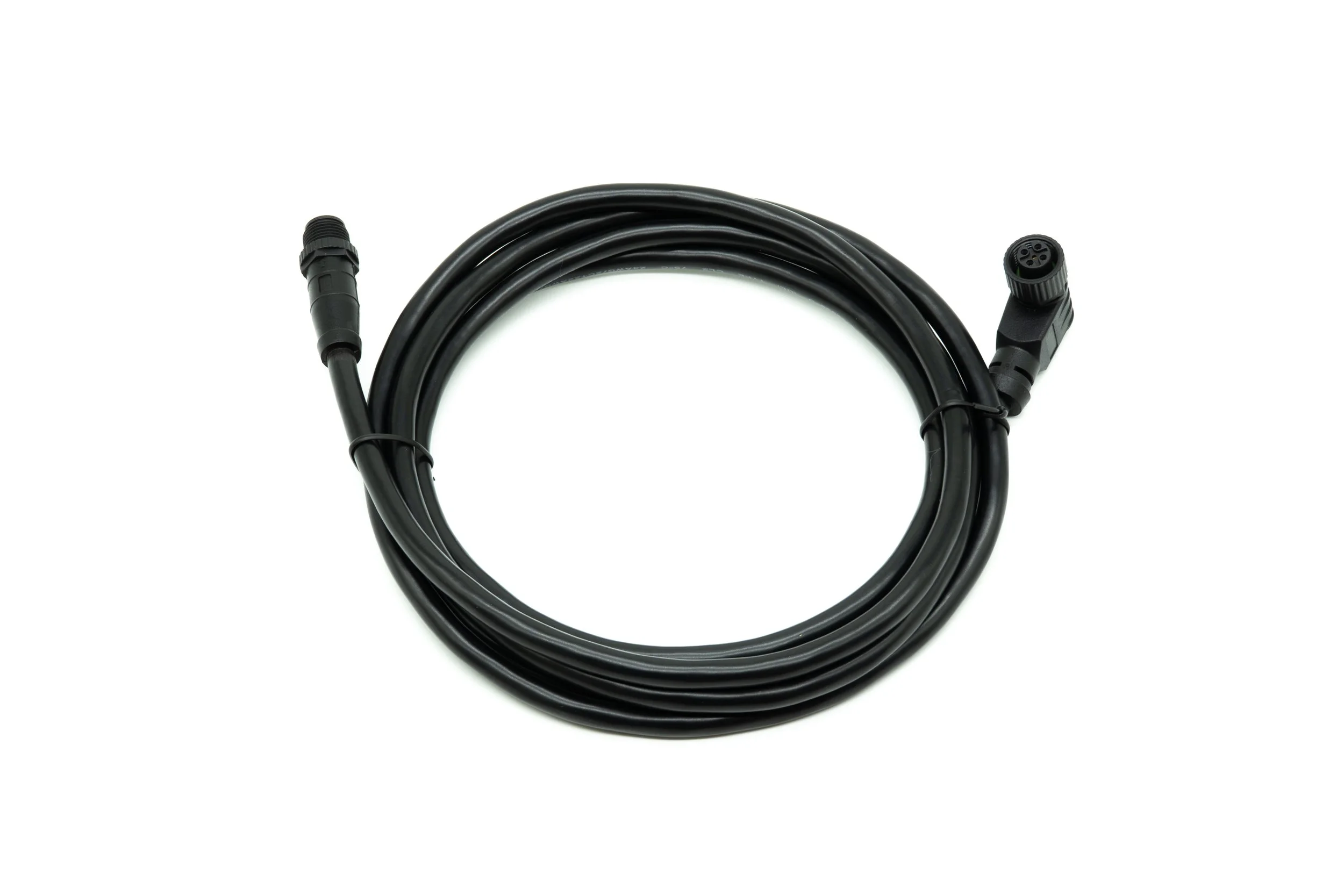

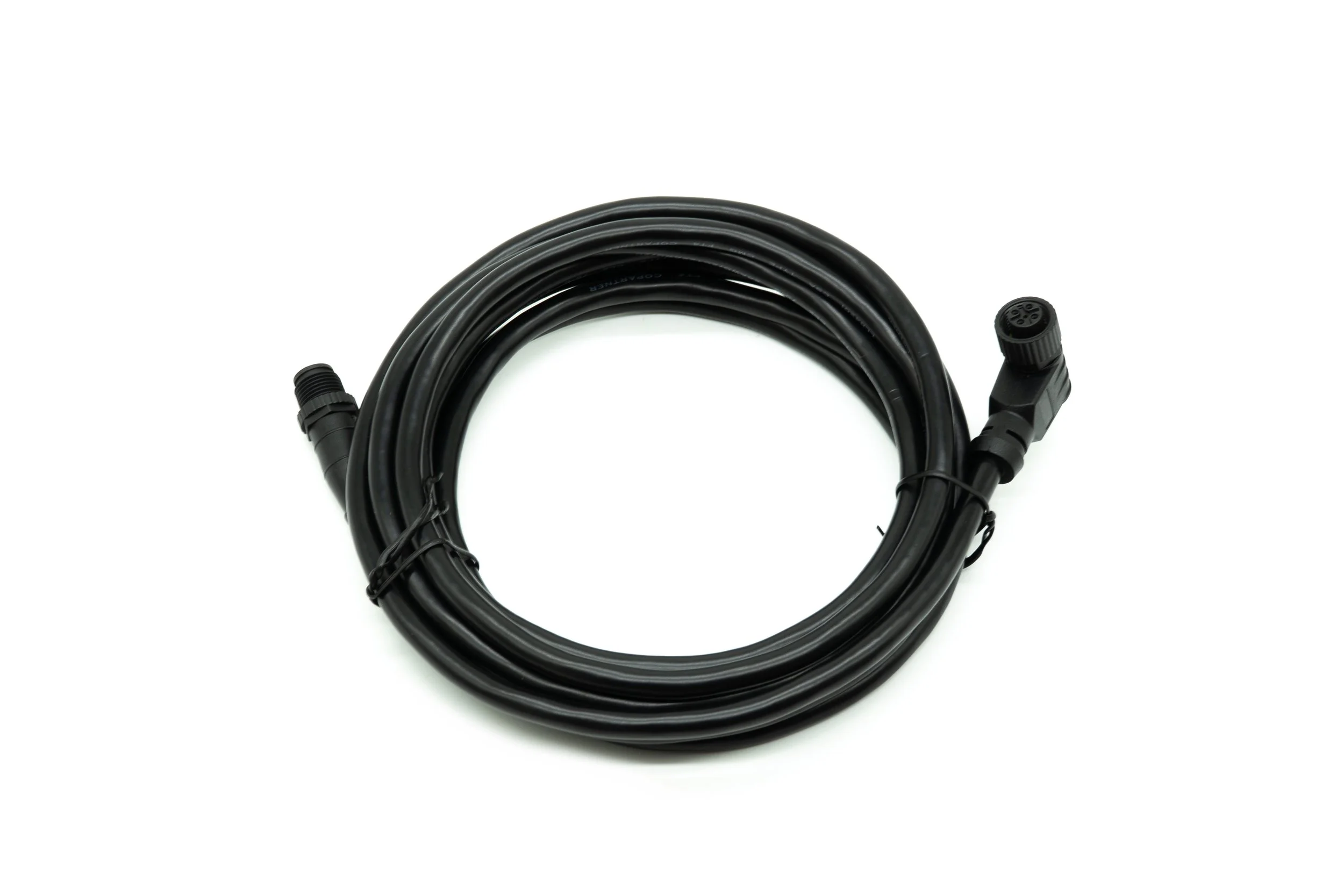

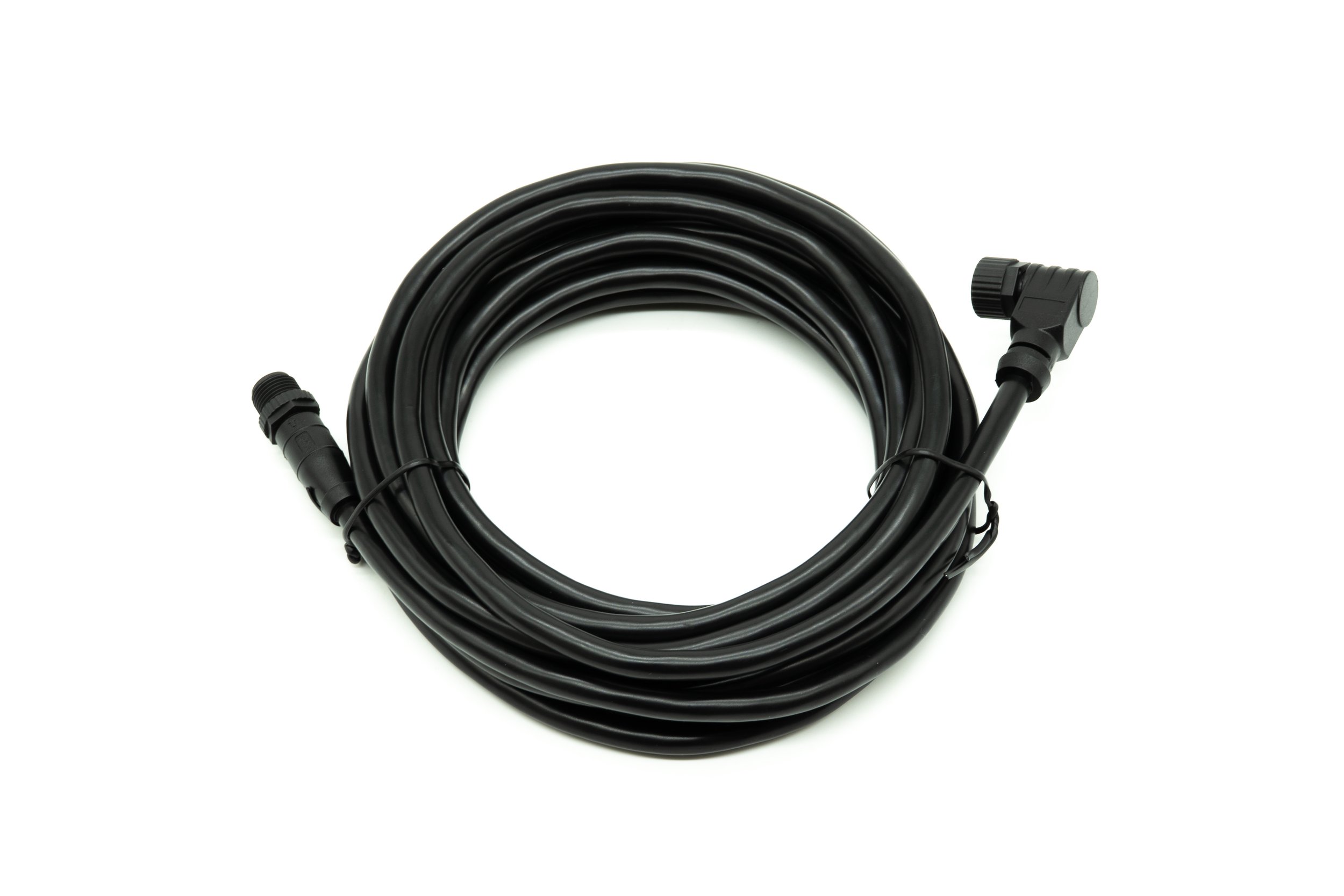

NMEA2000 drop cable for connecting your batteries, or other marine devices to your NMEA2000 network. 90 degree female side helps keeps a low profile connection point, built to IP67 waterproof specifications using gold plated contacts.
Contact Material: Gold Plated Copper
Number of Pins: 5
Termination Style: Straight Male to 90 Deg Female
Rated Current: 4A Max
Rated Voltage: 60V Max
Wire Gauge: 22AWG
Temperature Range: -13F to 185F
