This is the ultimate 36V trolling motor battery solution that will keep you fishing for hours. do away with multiple batteries by using this 36V 100AH package to provide a single, clean, reliable power source for your 36V Minn-Kota, Motorguide, Garmin, Power-Pole trolling motor (and others). These 24V and 36V batteries have been specifically designed and built for trolling motor applications. Our 100AH is perfect for those that require maximum power and runtime. These batteries are resistant to dust, vibration, moisture, and salty environments.
This is our newest Gen2 battery featuring an IP67 waterproof rating, cold temperature charging protection, an upgraded and more robust smart-BMS, EVE cells and Bluetooth monitoring.

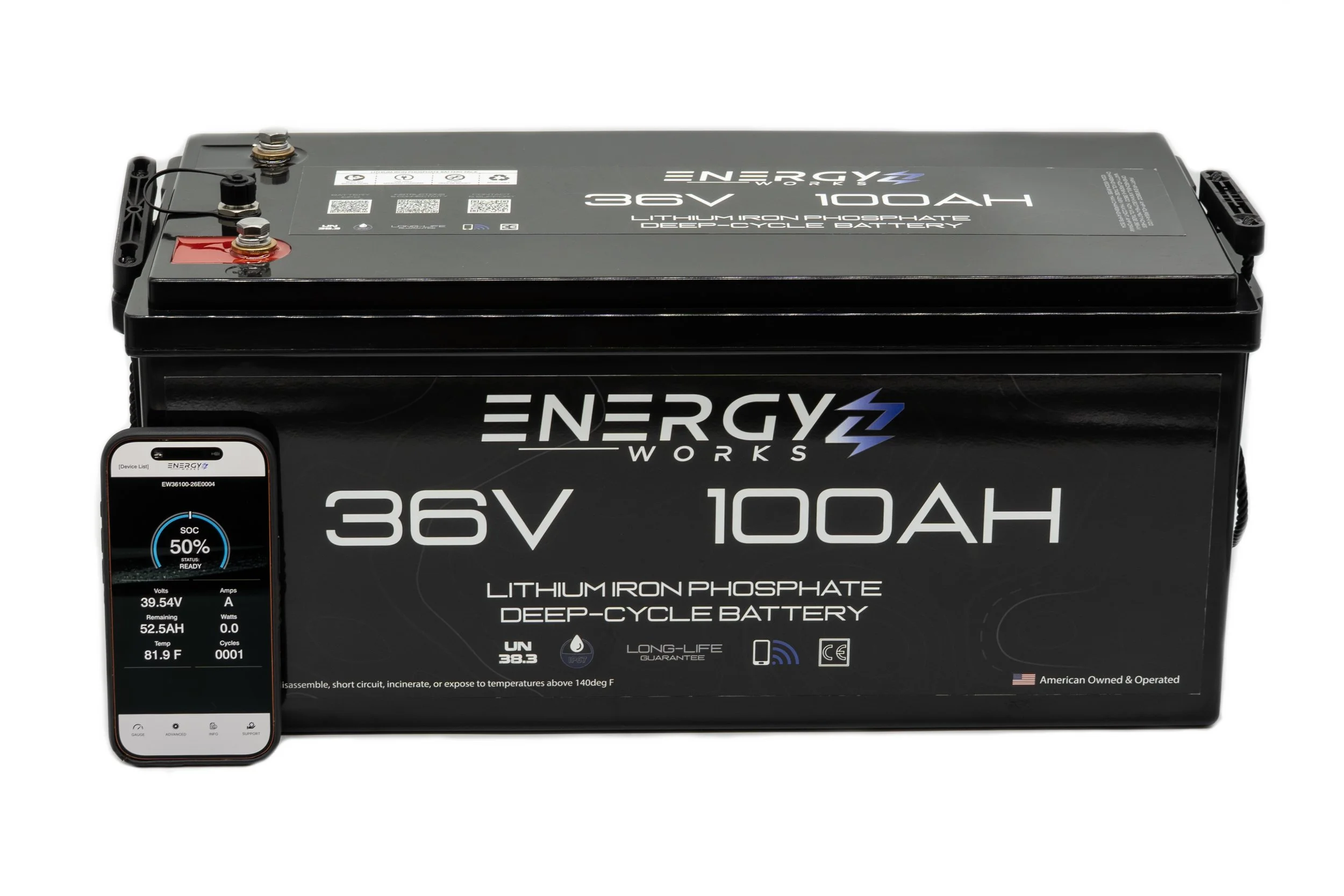

Wireless Monitoring via Bluetooth App (Apple/Android compatibility)
Long Life, 3000-5000 Total Cycles(compared to 500-800 for AGM)
Ultra Safe, Built-In BMS battery protection
UL1642, IEC62619, CE, UN38.3 Listed & Certified, ABYC E-13 Compliant, USCG E2-29 Compliant
Zero Maintenance
Ultra Fast Charging & Low Self-Discharge (3% per month)
60-70% Lighter than Lead-Acid Battery
100% Depth of Discharge Rated(DOD)
Cold Temperature Charging Protection (disables charging at 32 deg F)
IP67 Water Resistant
Removable Carry Handles for Easy Handling
Safe, Environmentally Friendly, Cobalt Free, Reduces Waste
Stainless Steel Terminal Hardware Included
Nominal Voltage: 38.4V
Rated Capacity: 100Ah
Energy: 4032Wh
Discharge Ending Voltage: 30V
Charging Voltage: 43.8V
Recommended Charging Current: 5A - 50A
Max Charging Current (BMS Limit): 50A
Max Continuous Discharge Current: 100A -1C, 200A Peak 5s
Cycle Life: 3000-5000 (dependent on discharge rate and depth)
Dimensions (LxWxH): 20.66"*9.44"*8.66" inches (similar to BCI Group 4D)
Cell Type: EVE Prismatic Grade-A
BMS Type: Smart 36V 12S 200A BT/UART
Weight: Approx. 65 lbs.
Low Temperature Charging Cutoff: 0 Deg C / 32 Deg F
Charge Temperature: Charging: 0-45 Deg C/Discharging:-20 to 60 Deg C
Storage Temperature: -4 -140F
Water/Dust Resistance Rating: IP67
Certification: CE/ROHS/FCC/UN38.3/MSDS
Terminal Thread Size: M8
All batteries include a limited 10 year no-hassle warranty against any manufacturer defects.
