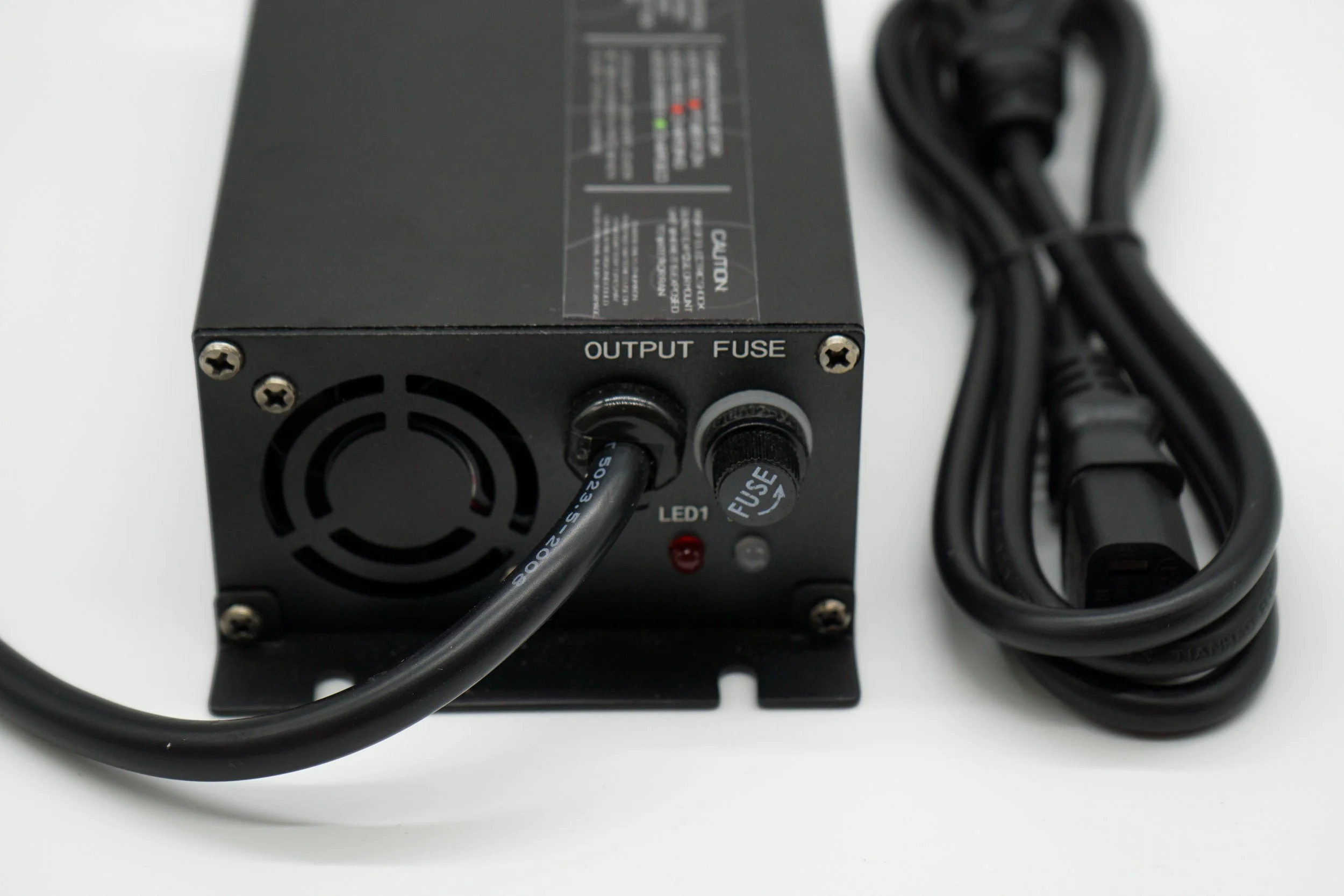

Energy Works AC to DC 12V 10A Lithium Charger
Our 120VAC to DC Chargers are designed specifically for our Lithium Iron-Phosphate (LiFEPO4) chemistry deep cycle batteries. plugs into any standard US wall socket and charges your battery at a rate of 10A. includes a built in fuse for protection and indicator lights to let you know when you’ve reached full charge. Charger will stop charging when battery is full.
Chargers come complete with an Anderson female quick disconnect connector on the DC output side, and a separate male Anderson plug harness featuring 12 inch 10 gauge tinned copper marine grade leads, with adhesive lined heat-shrunk, hydraulically crimped tinned copper lugs, to connect to your battery. this makes for a quick and easy connect/disconnect of the charger to the battery.
These chargers are designed for general usage, and are not waterproof, we recommend mounting in a dry location.
Features
Removable AC Power Supply Cable
Ultra Safe, Built-In Monitoring, Safe to Leave On
Two LED Indicator Lights to Display Condition
Built in Fuse
Anderson Quick Disconnect to Battery
Marine Grade Tinned Copper Wire and Lugs on Battery Harness
Built-In Mounting Brackets for Panel Mounting
Includes: Charger with DC Output Cable, AC Power Cable, Battery Cable w/ Anderson Plug, Spare Fuse.
2 Year Energy Works Warranty
Specifications
Input Voltage: 120VAC
Output Voltage: 14.6VDC
Output Current: 10 Amps
Battery Compatibility: Lithium Iron-Phosphate(LiFEPO4) Only
Input Lead Length: 60 Inches / 5 Feet
Output Lead Length: 57 Inches (Including Harness)
Dimensions: (including mounting bracket): 8.2” L x 3.6” W x 2” H
Weight: Approx. 1.8 Lbs.
Warranty
All chargers include a 2 year warranty against any manufacturer defects.
