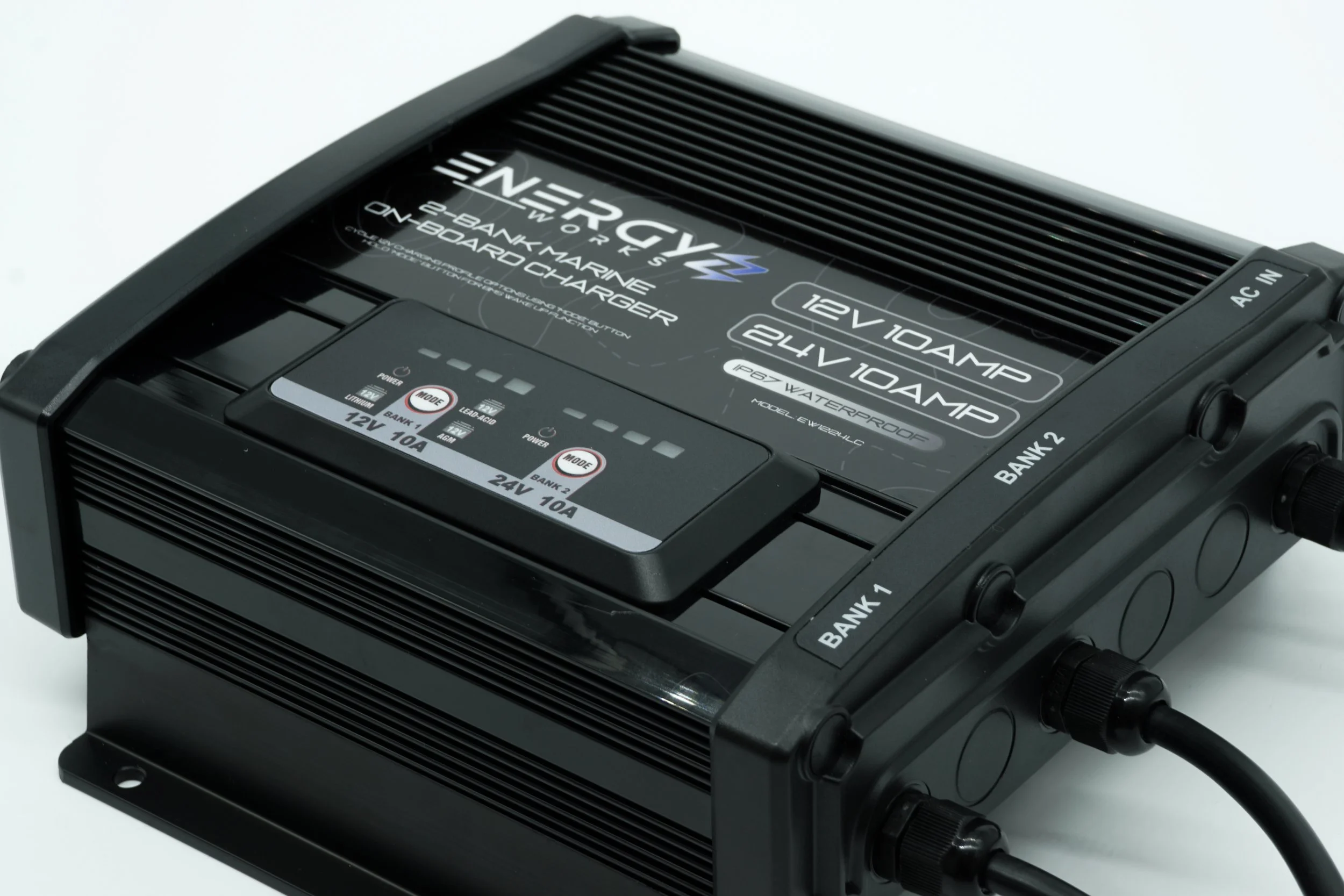

Energy Works On-Board Waterproof AC to DC 2-Bank 12V/24V 10A Charger
When it comes to the harsh environments of marine vessels, these new innovative energy works on-board waterproof chargers have your charging covered. designed for use in wet, salty, hot, or cold conditions, these will keep your LiFePO4 batteries topped off with power while surviving whatever nature throws their way. manufactured using powder coated aluminum, stainless steel, and polymer, then filled with pure epoxy resin to protect the vital electronics inside. features include smart-charging and sensing technology which monitors current, voltage, and temperature for maximum safety and reliability, as well as a BMS wake-up function to revive LiFePO4 batteries from a BMS shut-down.
Multi-Bank charging allows you to charge a single 12V battery (lithium, agm, or lead-acid selectable), and a 24V lithium battery at the same time. meaning, if you have a lead-acid cranking battery, and a single 24V LiFePO4 battery for your trolling motor, both can be charged together. toggle between battery types on the 12V bank at the push of a button.
Features
Marine-Grade material, designed for saltwater or freshwater use
LED status display with charging on/off button
Integrated cooling fan and heat sink for maximum heat dissipation
Smart-charging and battery monitoring
Built-in mounting brackets (can be mounted any direction)
BMS wake-up function
IP67 Ingress Protection
Fused charging leads
Selectable battery charging profile on 12V bank
Specifications
Input Voltage: 105-120VAC 60hz (US Plug)
Output Voltage 12V Bank: Selectable (Flooded Lead-Acid, AGM, LiFePO4)
Output Voltage 24V Bank: 29.2VDC
Charging Current: 10A (Both Banks)
Input Lead Length: 60 Inches / 5 Feet
Output Lead Length: 70 Inches / 5.83 Feet
Charger Dimensions: L x W x H; 9.75” x 8.75” x 4” (including mounting brackets)
Weight: 11.1Lbs
Warranty
All chargers include a 2 year warranty against any manufacturer defects.
